Isotropy

EMC-testing labs use electric (E-)field probes to determine the electric field strength generated during radiated immunity testing. The E-field probe is the (only) absolute reference to verify the value of the generated electric field strength. Therefore, the accuracy of E-field probes is of the utmost importance.

Over the years many probe manufacturers have specified the probe accuracy in different ways. In general, the user must calculate the overall accuracy of the E-field probe by combining the uncertainties of several separately specified parameters. Parameters like linearity, frequency response, temperature drift and non-isotropic behaviour determine the overall accuracy. This task can be quite cumbersome because specifications often are quite confusing, incomplete or even misleading.

What is isotropic response?

An E-field probe with perfect isotropic response will give exactly the same electric field strength reading, independent on how the probe is rotated in the field. In other words, if the probe is rotated over all its axes in a random way, the reading of the probe would not change at all. In this case the measured E-field diagram would be perfectly spherical, 360 degrees around.

In practice, every E-field probe will have non-isotropic behaviour due to many reasons, like differences between the detectors of the x, y and z axes, sharp edges of the probe housing (causing eddy currents), probe support (mounting), fiber optic connections etc.

How is isotropic response measured?

The measurement of the “real” isotropic response would be an extremely time consuming task. This is because the spherical surface of the probe should be scanned completely for every frequency the probe is used at.

In practice, you will find two different approaches:

1.    Balance between the axes

During the calibration of the E-field probe, an electric field is generated in one field orientation (for example vertical). The x, y and z-axe field probe elements are now placed in parallel to the field successively. The measured difference between the axes now represents the imbalance between the individual axes. This is sometimes reported as isotropic response, although this measurement represents only a small part of the isotropic response and has been measured under "ideal" conditions. With this method, the response of the probe in between the axes is not considered.

2.    Rotational symmetry

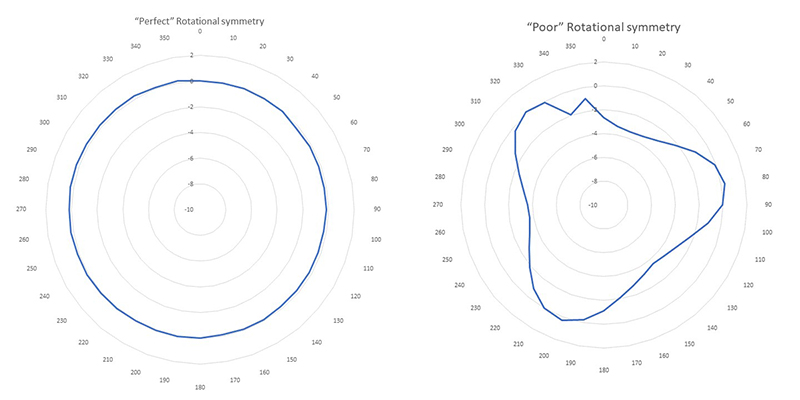

During rotational symmetry measurements, the probe is placed in an anechoic calibration chamber in a specially conditioned way. The probe is positioned under an angle of 54,7 degrees in relation to the generated field orientation. This angle is also referred to as the “magic angle”. By rotating the probe over a 360 degrees’ area and keeping it at this “magic angle”, each one of the axes will appear parallel to the field every 120 degrees of rotation. This method measures the isotropic behaviour on the “worst case” positions of the probe. The results are presented in a circular diagram. From the diagram both the balance between the axes and the response in between the axes can be read, giving a good overall-picture of the isotropic behaviour of the E-field probe.

Why is isotropic probe behaviour so important?

The field in an anechoic chamber is normally generated in one field orientation (successively horizontal and vertical).
This could wrongly lead to the conclusion that a probe, which is positioned with one axis parallel to the generated field, will correctly measure the generated field strength, even if the isotropic response of the probe is poor.

In real world, the field distribution in an anechoic chamber is not perfect at all. This can be easily seen from the EN61000-4-3, where the requirements for the field homogeneity in an anechoic chamber is allowed to have a maximum error of 6 dB.

This non-isotropic field behaviour of anechoic chambers is caused by reflections occurring in the chamber, even after a lot of effort is taken to reduce these reflections (by using absorbing materials).

When these reflections are measured incorrectly, the anechoic chamber performance is measured incorrectly. This regularly leads to unjustified rejection or approval of the room during the 16 points calibration and incorrect field strength measurements during normal EMC-testing.

The basic thought is that the field in an anechoic chamber is only present in one field orientation. This is done so that the probe does not have to be isotropic, can be defined as circular reasoning, since the exact goal of the 16-point calibration with the field probe is to determine whether the field in the anechoic room is homogeneous. This is only present in one field orientation!

How is isotropic behaviour specified?

Over the years, probe manufacturers specify isotropic response at a single frequency point and at a relative low frequency. However, isotropic response of a field probe strongly changes over frequency. Where the isotropy is relatively good at low frequencies, the performance will get much worse at high frequencies.

At low frequencies, the dimensions of a probe will be relative small compared to the wavelength of the RF field. For example, at 50 MHz, the wavelength is 6 m, making every E-field probe relatively small. In this case, an E-field probe will have a rather good isotropic response by default.

However, at frequencies above a few GHz, the dimensions of a E-Field probe become significant compared to the wavelength of the measured field and large isotropic deviations will occur.

Currently, E-field probe manufacturers specify their isotropic performance at frequencies below 2 GHz where the isotropic response of the E-field probes still look relatively good.

The more interesting and relevant area to measure E-field probe isotropic response would be at the highest frequency the probe is used.

Measurements of a large number of different E-field probes of well known probe manufacturers, show that at frequencies between 3 and 6 GHz, isotropic errors are in the range of 6 to 10 dB!

Conclusion

Although many claim otherwise, isotropy is one of the most important specification of a field probe.

Many e-field probe manufacturers specify isotropy only very briefly. The isotropic response is only given at (very) low frequencies. Because of this misleading way of specifying, the actual error contribution cannot be determined correctly.

When purchasing equipment an important discussion has to be made and a lot of parameters that should be taken into account. The correct interpretation of specifications is the key.
